Waveshare 4inch HDMI LCD, 800x480, IPS

Be the first to review this product

₹2,099.00
OR

Quick Overview

800x480, 4inch Resistive Touch Screen LCD, HDMI interface, IPS Screen, Designed for Raspberry Pi

Details

800x480, 4inch Resistive Touch Screen LCD, HDMI interface, IPS Screen, Designed for Raspberry Pi

Features

  • 800x480 high hardware resolution
  • Resistive touch control
  • IPS technology, high quality and perfect displaying from very wide viewing angle
  • Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
  • Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
  • Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
  • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
  • Backlight can be turned off to lower power consumption

Interface

PIN NO.SYMBOLDESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 NC NC
6, 9, 14, 20, 25 GND Ground
19 TP_SI SPI data input of Touch Panel
21 TP_SO SPI data output of Touch Panel
22 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
23 TP_SCK SPI clock of Touch Panel
26 TP_CS Touch Panel chip selection, low active

External Dimension

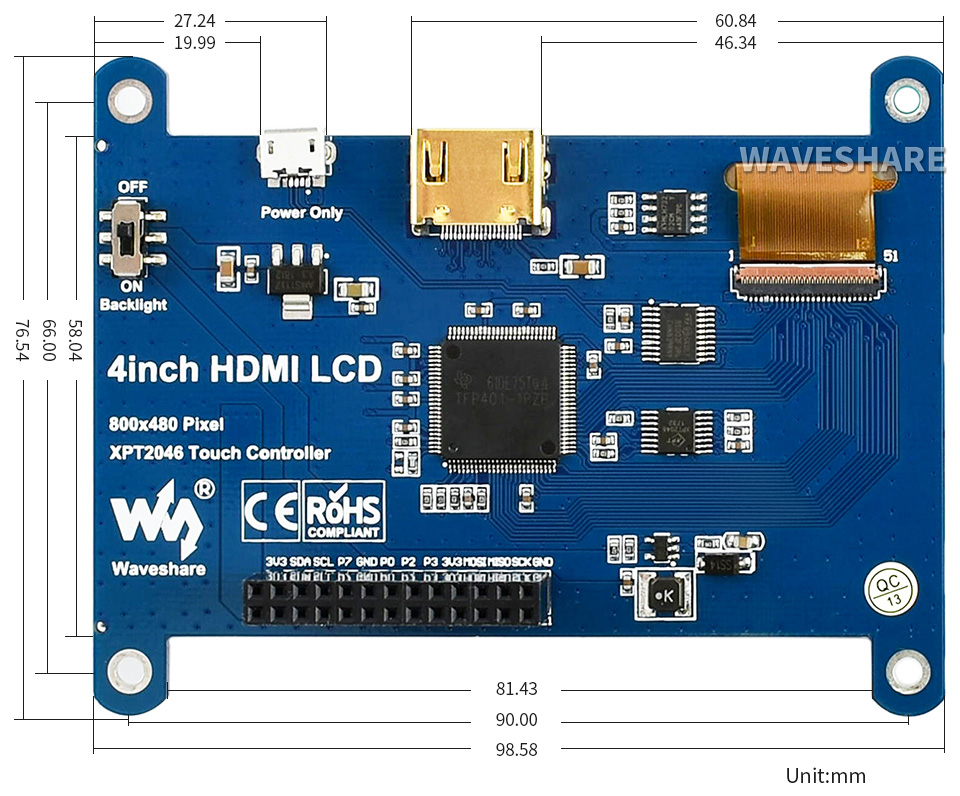

4inch-HDMI-LCD-dimension
